Scenario: Deploy Multi-Region Elasticsearch Cluster on Azure

Previously, I wrote about my proposal for modular ARM templates. Here I'm going to go through the scenario of deploying a full, multi-location Elasticsearch node cluster with a single public endpoint and pretty DNS.

This is a sequel to Developing Azure Modular ARM Templates. Study that first. You need the Deploy ARM Template PowerShell at the bottom to complete this deployment.

Let's begin by reviewing the solution:

This solution is at https://gitlab.com/davidbetz/azure-elasticsearch-nodes-scenario

solution files

Here we see:

  • A 3-phase Azure deployment
  • 3 PowerShell files
  • A VM setup script (install.sh)
  • A script that install.sh will run (create_data_generation_setup.sh)
  • A file that create_data_generation_setup.sh will indirectly use (hamlet.py)

The modular deployment phases are:

  • Setup of general resources (storage, vnet, IP, NIC, NSG)
  • Setup of VNet gateways
  • Setup of VMs

The first phase exists to lay out the general components. This is a very quick phase.

The second phase creates the gateways.

After the second phase, we will create the VNet connections with PowerShell

The third phase will create the VMs

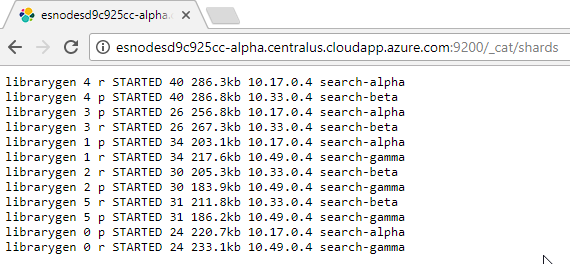

Then we will generate sample data and test the ES cluster.

Then we will create an Azure Traffic Manager and test.

Finally we will add a pretty name to the traffic manager with Azure DNS.

Let's do this...

Creating Storage for Deployment

The first thing we're going to do is create a storage account for deployment files. In various examples online, you see this in Gitlab. We're not going to do that. Here we create a storage account that future phases will reference. You only need one... ever. Here I'm creating one just for this specific example deployment.


    $uniquifier = $([guid]::NewGuid().tostring().substring(0, 8))
    $rg = "esnodes$uniquifier"
    _createdeploymentAccount -rg $rg -uniquifier $uniquifier

Reference the Deploy ARM Template PowerShell file at the end of Developing Azure Modular ARM Templates for the above and later code.

Output

VERBOSE: Performing the operation "Replacing resource group ..." on target "".
VERBOSE: 11:01:28 PM - Created resource group 'esnodesfbdac204' in location 'centralus'


ResourceGroupName : esnodesfbdac204
Location          : centralus
ProvisioningState : Succeeded
Tags              :
ResourceId        : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204


ResourceGroupName      : esnodesfbdac204
StorageAccountName     : filesfbdac204
Id                     : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Storage/storageAccounts/filesfbdac204
Location               : centralus
Sku                    : Microsoft.Azure.Management.Storage.Models.Sku
Kind                   : BlobStorage
Encryption             :
AccessTier             : Hot
CreationTime           : 7/22/2017 4:01:29 AM
CustomDomain           :
Identity               :
LastGeoFailoverTime    :
PrimaryEndpoints       : Microsoft.Azure.Management.Storage.Models.Endpoints
PrimaryLocation        : centralus
ProvisioningState      : Succeeded
SecondaryEndpoints     :
SecondaryLocation      :
StatusOfPrimary        : Available
StatusOfSecondary      :
Tags                   : {}
EnableHttpsTrafficOnly : False
Context                : Microsoft.WindowsAzure.Commands.Common.Storage.LazyAzureStorageContext
ExtendedProperties     : {}


CloudBlobContainer : Microsoft.WindowsAzure.Storage.Blob.CloudBlobContainer
Permission         : Microsoft.WindowsAzure.Storage.Blob.BlobContainerPermissions
PublicAccess       : Blob
LastModified       : 7/22/2017 4:02:00 AM +00:00
ContinuationToken  :
Context            : Microsoft.WindowsAzure.Commands.Storage.AzureStorageContext
Name               : support

Phase 1 Deployment

Now we're ready for phase 1 of deployment. This phase is quick and easy. It simply creates the basic components that future phases will use.

Part of what phase 1 will deploy is a virtual network per region that we're requesting. In this example, we have "central us", "west us", and "east us". We need a virtual network in each.

But, to make this work we have to remember our IP addressing:

Very short IP address review

Given a 10.x.x.x network, and a 0.y.y.y mask, 10 is your network and the x.x.x is your host area.

Given a 10.1.x.x network, and a 0.0.y.y mask, 10.1 is your network and x.x is your mask.

The concept of subnetting is relative to the network and only shows up in discussions of larger scale networks and supernetting. Tell the pendantic sysadmins to take a hike when they they to confuse you with over emphasising the network vs. subnetwork aspects. This is a semantic concept, not a technical one. That is, it relates to the design, not the bits themselves.

The virtual networks in our modular deployment uses the following addressSpace:


    "addressSpace": {
        "addressPrefixes": [
            "[concat('10.', mul(16, add(copyIndex(), 1)), '.0.0/12')]"
        ]
    },

We see that our networks follow a 10.16*n+1.0.0/12 pattern.

This takes n to generate networks: n=0 => 10.16.0.0, n=1 => 10.32.0.0, and n=2 => 10.48.0.0.

Azure allows you to split your networks up into subnets as well. This is great for organization. Not only that, when you specify a NIC, you put it on a subnet. So, let's look at our subnet configuration:


    "subnets": [
        {
            "name": "subnet01",
            "properties": {
                "addressPrefix": "[concat('10.', add(mul(16, add(copyIndex(), 1)), 1), '.0.0/16')]"
            }
        },
        {
            "name": "subnet02",
            "properties": {
                "addressPrefix": "[concat('10.', add(mul(16, add(copyIndex(), 1)), 2), '.0.0/16')]"
            }
        },
        {
            "name": "GatewaySubnet",
            "properties": {
                "addressPrefix": "[concat('10.', mul(16, add(copyIndex(), 1)), '.0.', 16,'/28')]"
            }
        }
    ]

The NICs for our VMs will be on subnet01. We will not be using subnet02, but I always include it for future experiments and as an example of further subnetting.

GatewaySubnet is special and is used only by the VPN gateways. Don't mess with that.

Zooming into subnet01, we see a 10.(16*n+1)+1.0.0/16 pattern. It's basically the network + 1 with the next four bits defining the subnet (in our case the subnet is the network; it's only a subnet from the perspective of the network, but we're not viewing it from that perspective).

This takes n to generate networks: n=0 => 10.17.0.0, n=1 => 10.33.0.0, and n=2 => 10.49.0.0.

End of mini-lesson.

Now to deploy phase 1...

Output

(filtering for phase 1)
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\networkInterfaces\nic-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\networkSecurityGroups\nsg-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\publicIPAddresses\pip-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\virtualNetworks\vnet-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\storage\storageAccounts\storage-copyIndex.json...
(excluding \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\publicIPAddresses\2.pip-gateway-copyIndex.json)
(excluding \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\virtualNetworkGateways\2.gateway-copyIndex.json)
(excluding \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\compute\virtualMachines\3.vm-copyIndex.json)
(excluding \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\compute\virtualMachines\extensions\3.script.json)
------------------------------------

------------------------------------
Creating \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\deploy\07212017-110346.1...
Deploying template \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\deploy\azuredeploy-generated.json
VERBOSE: Performing the operation "Creating Deployment" on target "esnodesfbdac204".
VERBOSE: 07:03:49 PM - Template is valid.
VERBOSE: 07:03:51 PM - Create template deployment 'elasticsearch-secure-nodes07212017-110346'
VERBOSE: 07:03:51 PM - Checking deployment status in 5 seconds
VERBOSE: 07:03:56 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:01 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:06 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204alpha' provisioning status is running
VERBOSE: 07:04:06 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-gamma' provisioning status is running
VERBOSE: 07:04:06 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gamma' provisioning status is succeeded
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/publicIPAddresses 'pip-beta' provisioning status is succeeded
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/publicIPAddresses 'pip-alpha' provisioning status is succeeded
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/virtualNetworks 'vnet-gamma' provisioning status is succeeded
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/virtualNetworks 'vnet-alpha' provisioning status is succeeded
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/virtualNetworks 'vnet-beta' provisioning status is succeeded
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-alpha' provisioning status is running
VERBOSE: 07:04:12 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204gamma' provisioning status is running
VERBOSE: 07:04:12 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-beta' provisioning status is running
VERBOSE: 07:04:12 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204beta' provisioning status is running
VERBOSE: 07:04:12 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:17 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:22 PM - Resource Microsoft.Network/networkInterfaces 'nic-alpha' provisioning status is succeeded
VERBOSE: 07:04:22 PM - Resource Microsoft.Network/networkInterfaces 'nic-gamma' provisioning status is succeeded
VERBOSE: 07:04:22 PM - Resource Microsoft.Network/networkInterfaces 'nic-beta' provisioning status is succeeded
VERBOSE: 07:04:22 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-alpha' provisioning status is succeeded
VERBOSE: 07:04:22 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-beta' provisioning status is succeeded
VERBOSE: 07:04:22 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-gamma' provisioning status is succeeded
VERBOSE: 07:04:22 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:27 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:33 PM - Checking deployment status in 5 seconds
VERBOSE: 07:04:38 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204gamma' provisioning status is succeeded
VERBOSE: 07:04:38 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204beta' provisioning status is succeeded
VERBOSE: 07:04:38 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204alpha' provisioning status is succeeded
VERBOSE: 07:04:38 PM - Checking deployment status in 5 seconds


DeploymentName          : elasticsearch-secure-nodes07212017-110346
ResourceGroupName       : esnodesfbdac204
ProvisioningState       : Succeeded
Timestamp               : 7/23/2017 12:04:32 AM
Mode                    : Incremental
TemplateLink            :
Parameters              :
                          Name             Type                       Value
                          ===============  =========================  ==========
                          admin-username   String                     dbetz
                          ssh-public-key   String                     ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCxbo0LWWXCHEEGxgtraIhHBPPnt+kJGMjYMC6+9gBIsYz8R8bSFfge7ljHRxvJoye+4IrdSf2Ee2grgm2+xT9HjMvVR2/LQjPY+ocdinYHlM6miqvMgMblOMVm6/WwY0L
                          ZkozPKuSXzhO+/Q6HTZBr2pig/bclvJuFPBtClrzZx5R3NfV33/2rZpFZH9OdAf28q55jbZ1t9AJhtD27s34/cRVBXNBQtc2Nw9D8cEJ+raRdJitAOX3U41bjbrO1u3CQ/JtXg/35wZTJH1Yx7zmDl97cklfiArAfaxkgpWkGhob6A6Fu7LvEgLC25gO5NsY+g4CDqGJT5kzbcyQDDh
                          bf dbetz@localhost.localdomain
                          script-base      String

Outputs                 :
DeploymentDebugLogLevel :

Now we have all kinds of goodies setup. Note how fast that was: template validation was at 07:03:49 PM and it finished at 07:04:38 PM.

post phase 1

Phase 2 Deployment

Now for phase 2. Here we're creating the VPN gateways. Why? Because we have multiple virtual networks in multiple regions. We need to create VPN connections between them to allow communication. To create VPN connections, we need VPN gateways.

Output

Be warned: this takes forever.

(filtering for phase 2)

Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\networkInterfaces\nic-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\networkSecurityGroups\nsg-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\publicIPAddresses\pip-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\virtualNetworks\vnet-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\storage\storageAccounts\storage-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\publicIPAddresses\2.pip-gateway-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\virtualNetworkGateways\2.gateway-copyIndex.json...
(excluding \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\compute\virtualMachines\3.vm-copyIndex.json)
(excluding \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\compute\virtualMachines\extensions\3.script.json)
------------------------------------

------------------------------------
Creating \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\deploy\07222017-074129.2...
Deploying template \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\deploy\azuredeploy-generated.json
VERBOSE: Performing the operation "Creating Deployment" on target "esnodesfbdac204".
VERBOSE: 7:41:42 PM - Template is valid.
VERBOSE: 7:41:43 PM - Create template deployment 'elasticsearch-secure-nodes07222017-074129'
VERBOSE: 7:41:43 PM - Checking deployment status in 5 seconds
VERBOSE: 7:41:49 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-beta' provisioning status is succeeded
VERBOSE: 7:41:49 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-alpha' provisioning status is succeeded
VERBOSE: 7:41:49 PM - Resource Microsoft.Network/virtualNetworks 'vnet-gamma' provisioning status is succeeded
VERBOSE: 7:41:49 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204alpha' provisioning status is succeeded
VERBOSE: 7:41:49 PM - Checking deployment status in 5 seconds
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/networkInterfaces 'nic-gamma' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/networkInterfaces 'nic-alpha' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/publicIPAddresses 'pip-alpha' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204gamma' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204beta' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/publicIPAddresses 'pip-beta' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gamma' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/virtualNetworks 'vnet-beta' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/virtualNetworks 'vnet-alpha' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-gamma' provisioning status is succeeded
VERBOSE: 7:41:54 PM - Checking deployment status in 5 seconds
VERBOSE: 7:41:59 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-gamma' provisioning status is running
VERBOSE: 7:41:59 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gateway-alpha' provisioning status is succeeded
VERBOSE: 7:41:59 PM - Resource Microsoft.Network/networkInterfaces 'nic-beta' provisioning status is succeeded
VERBOSE: 7:41:59 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gateway-gamma' provisioning status is succeeded
VERBOSE: 7:41:59 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gateway-beta' provisioning status is succeeded
VERBOSE: 7:41:59 PM - Checking deployment status in 10 seconds
VERBOSE: 7:42:09 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-beta' provisioning status is running
VERBOSE: 7:42:09 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-alpha' provisioning status is running
VERBOSE: 7:42:10 PM - Checking deployment status in 11 seconds

takes forever

VERBOSE: 8:11:11 PM - Checking deployment status in 11 seconds
VERBOSE: 8:11:22 PM - Checking deployment status in 11 seconds
VERBOSE: 8:11:33 PM - Checking deployment status in 10 seconds
VERBOSE: 8:11:43 PM - Checking deployment status in 5 seconds
VERBOSE: 8:11:48 PM - Checking deployment status in 9 seconds
VERBOSE: 8:11:58 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-beta' provisioning status is succeeded
VERBOSE: 8:11:58 PM - Checking deployment status in 11 seconds
VERBOSE: 8:12:09 PM - Checking deployment status in 5 seconds
VERBOSE: 8:12:14 PM - Checking deployment status in 7 seconds
VERBOSE: 8:12:21 PM - Checking deployment status in 11 seconds
VERBOSE: 8:12:33 PM - Checking deployment status in 11 seconds
VERBOSE: 8:12:44 PM - Checking deployment status in 5 seconds
VERBOSE: 8:12:49 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-alpha' provisioning status is succeeded
VERBOSE: 8:12:49 PM - Checking deployment status in 8 seconds
VERBOSE: 8:12:57 PM - Checking deployment status in 11 seconds
VERBOSE: 8:13:08 PM - Checking deployment status in 5 seconds
VERBOSE: 8:13:14 PM - Checking deployment status in 7 seconds
VERBOSE: 8:13:21 PM - Checking deployment status in 5 seconds
VERBOSE: 8:13:26 PM - Checking deployment status in 7 seconds
VERBOSE: 8:13:33 PM - Checking deployment status in 11 seconds
VERBOSE: 8:13:45 PM - Checking deployment status in 5 seconds
VERBOSE: 8:13:50 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-gamma' provisioning status is succeeded


DeploymentName          : elasticsearch-secure-nodes07222017-074129
ResourceGroupName       : esnodesfbdac204
ProvisioningState       : Succeeded
Timestamp               : 7/23/2017 1:13:44 AM
Mode                    : Incremental
TemplateLink            :
Parameters              :
                          Name             Type                       Value
                          ===============  =========================  ==========
                          admin-username   String                     dbetz
                          ssh-public-key   String                     ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCxbo0LWWXCHEEGxgtraIhHBPPnt+kJGMjYMC6+9gBIsYz8R8bSFfge7ljHRxvJoye+4IrdSf2Ee2grgm2+xT9HjMvVR2/LQjPY+ocdinYHlM6miqvMgMblOMVm6/WwY0LZkozPKuSXzhO
                          +/Q6HTZBr2pig/bclvJuFPBtClrzZx5R3NfV33/2rZpFZH9OdAf28q55jbZ1t9AJhtD27s34/cRVBXNBQtc2Nw9D8cEJ+raRdJitAOX3U41bjbrO1u3CQ/JtXg/35wZTJH1Yx7zmDl97cklfiArAfaxkgpWkGhob6A6Fu7LvEgLC25gO5NsY+g4CDqGJT5kzbcyQDDhbf
                          dbetz@localhost.localdomain
                          script-base      String

Outputs                 :
DeploymentDebugLogLevel :

At this point the gateways have been created.

gws

Creating a VPN Connection Mesh

You can follow whip out various topologies to connect the networks (i.e. hub-and-spoke, point-to-point, etc) . In this case I'm going for a full mesh topology. This connects everyone directly to every one else. It's the most hardcore option.

Given that a connection is unidirectional, you each toplogical unit between areas require both a to and from directional connection. So, A->B and B->A for a 2-point mesh. For a 3-point mesh, it's all over the board. The formula everyone who goes through network engineering training memorizes is n*(n-1). So, for n=3, you have 3 * 2 (6) connections. For n=5, this is 20 connections. That's a lot, but there's no lame bottleneck from tunneling traffic through a central hub (=hub-and-spoke topology).

When creating Azure VPN connections, you specify a shared key. This just makes sense. There needs to be private passcode to enable them to trust each other. In this example, I'm cracking open ASP.NET to auto-generate a wildly complex password. This thing is crazy. Here are some of the passwords it spits out:

  • rT64%nr*#OX/CR)O
  • XwX3UamErI@D)>N{
  • Ej.ZHSngc|yenaiD
  • @*KUz|$#^Jvp-9Vb
  • _7q)6h6/.G;8C?U(

Goodness.

Anyway, on to the races...


    function createmesh { param([Parameter(Mandatory=$true)]$rg,
                                [Parameter(Mandatory=$true)]$key)

        function getname { param($id)
            $parts = $id.split('-')
            return $parts[$parts.length-1]
        }

        $gateways = Get-AzureRmVirtualNetworkGateway -ResourceGroupName $rg

        ($gateways).foreach({
            $source = $_
            ($gateways).foreach({
                $target = $_
                $sourceName = getname $source.Name
                $targetName = getname $target.Name
                if($source.name -ne $target.name) {
                    $connectionName = ('conn-{0}2{1}' -f $sourceName, $targetName)
                    Write-Host "$sourceName => $targetName"
                    New-AzureRmVirtualNetworkGatewayConnection -ResourceGroupName $rg -Location $source.Location -Name $connectionName `
                        -VirtualNetworkGateway1 $source `
                        -VirtualNetworkGateway2 $target `
                        -ConnectionType Vnet2Vnet `
                        -RoutingWeight 10 `
                        -SharedKey $key
                }
            })
        })
    }
    function _virtualenv {

    Add-Type -AssemblyName System.Web
    $key = [System.Web.Security.Membership]::GeneratePassword(16,2)

    createmesh -rg $rgGlobal -key $key

    } _virtualenv

Output

beta => gamma
beta => alpha
gamma => beta
gamma => alpha
alpha => beta
alpha => gamma



Name                    : conn-beta2gamma
ResourceGroupName       : esnodesfbdac204
Location                : westus
Id                      : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/connections/conn-beta2gamma
Etag                    : W/"d9644745-03f4-461c-9efa-1477cd5e13d1"
ResourceGuid            : bfd89895-af3d-44ee-80c8-74413a18f6c4
ProvisioningState       : Succeeded
Tags                    :
AuthorizationKey        :
VirtualNetworkGateway1  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-beta"
VirtualNetworkGateway2  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-gamma"
LocalNetworkGateway2    :
Peer                    :
RoutingWeight           : 10
SharedKey               : oF[sa4n^sq)aIYSj
ConnectionStatus        : Unknown
EgressBytesTransferred  : 0
IngressBytesTransferred : 0
TunnelConnectionStatus  : []

Name                    : conn-beta2alpha
ResourceGroupName       : esnodesfbdac204
Location                : westus
Id                      : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/connections/conn-beta2alpha
Etag                    : W/"893dc827-a077-4003-b086-ec3aba8344ee"
ResourceGuid            : c8780c08-9678-4720-a90b-42a8509c059e
ProvisioningState       : Succeeded
Tags                    :
AuthorizationKey        :
VirtualNetworkGateway1  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-beta"
VirtualNetworkGateway2  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-alpha"
LocalNetworkGateway2    :
Peer                    :
RoutingWeight           : 10
SharedKey               : oF[sa4n^sq)aIYSj
ConnectionStatus        : Unknown
EgressBytesTransferred  : 0
IngressBytesTransferred : 0
TunnelConnectionStatus  : []

Name                    : conn-gamma2beta
ResourceGroupName       : esnodesfbdac204
Location                : eastus
Id                      : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/connections/conn-gamma2beta
Etag                    : W/"a99e47f4-fd53-4583-811f-a868d1c0f011"
ResourceGuid            : 50b8bc36-37b9-434f-badc-961266b19436
ProvisioningState       : Succeeded
Tags                    :
AuthorizationKey        :
VirtualNetworkGateway1  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-gamma"
VirtualNetworkGateway2  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-beta"
LocalNetworkGateway2    :
Peer                    :
RoutingWeight           : 10
SharedKey               : oF[sa4n^sq)aIYSj
ConnectionStatus        : Unknown
EgressBytesTransferred  : 0
IngressBytesTransferred : 0
TunnelConnectionStatus  : []

Name                    : conn-gamma2alpha
ResourceGroupName       : esnodesfbdac204
Location                : eastus
Id                      : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/connections/conn-gamma2alpha
Etag                    : W/"4dd2d765-4bb0-488f-9d28-dabbf618c28f"
ResourceGuid            : e9e4591f-998b-4318-b297-b2078409c7e9
ProvisioningState       : Succeeded
Tags                    :
AuthorizationKey        :
VirtualNetworkGateway1  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-gamma"
VirtualNetworkGateway2  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-alpha"
LocalNetworkGateway2    :
Peer                    :
RoutingWeight           : 10
SharedKey               : oF[sa4n^sq)aIYSj
ConnectionStatus        : Unknown
EgressBytesTransferred  : 0
IngressBytesTransferred : 0
TunnelConnectionStatus  : []

Name                    : conn-alpha2beta
ResourceGroupName       : esnodesfbdac204
Location                : centralus
Id                      : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/connections/conn-alpha2beta
Etag                    : W/"aafef4bf-d241-4cdd-88b7-b6ecd793a662"
ResourceGuid            : ef5bb61b-fcbe-4452-bf1f-b847f32dfa95
ProvisioningState       : Succeeded
Tags                    :
AuthorizationKey        :
VirtualNetworkGateway1  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-alpha"
VirtualNetworkGateway2  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-beta"
LocalNetworkGateway2    :
Peer                    :
RoutingWeight           : 10
SharedKey               : oF[sa4n^sq)aIYSj
ConnectionStatus        : Unknown
EgressBytesTransferred  : 0
IngressBytesTransferred : 0
TunnelConnectionStatus  : []

Name                    : conn-alpha2gamma
ResourceGroupName       : esnodesfbdac204
Location                : centralus
Id                      : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/connections/conn-alpha2gamma
Etag                    : W/"edf5f85a-0f7d-4883-8e45-433de9e045b2"
ResourceGuid            : 074c168c-1d42-4704-b978-124c8505a35b
ProvisioningState       : Succeeded
Tags                    :
AuthorizationKey        :
VirtualNetworkGateway1  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-alpha"
VirtualNetworkGateway2  : "/subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodesfbdac204/providers/Microsoft.Network/virtualNetworkGateways/gateway-gamma"
LocalNetworkGateway2    :
Peer                    :
RoutingWeight           : 10
SharedKey               : oF[sa4n^sq)aIYSj
ConnectionStatus        : Unknown
EgressBytesTransferred  : 0
IngressBytesTransferred : 0
TunnelConnectionStatus  : []

Phase 3 Deployment

Now to create the VMs...

In our scenario, it's really important to do this phase after creaitng the VPN connection mesh. During the VMs creation, Elasticsearch is automatically setup and the nodes will attempt to connect each other.

No mesh => no connection => you-having-a-fit.

During this deploy, you're going to see that everything from phases 1 and 2 is validated. That's just the idempotent nature of ARM template deployment.

Output

(filtering for phase 3)
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\networkInterfaces\nic-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\networkSecurityGroups\nsg-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\publicIPAddresses\pip-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\virtualNetworks\vnet-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\storage\storageAccounts\storage-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\publicIPAddresses\2.pip-gateway-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\network\virtualNetworkGateways\2.gateway-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\compute\virtualMachines\3.vm-copyIndex.json...
Merging \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\template\resources\compute\virtualMachines\extensions\3.script.json...
Uploading elasticsearch-secure-nodes\07222017-084857\create_data_generation_setup.sh
Uploading elasticsearch-secure-nodes\07222017-084857\install.sh
Uploading elasticsearch-secure-nodes\07222017-084857\generate\hamlet.py
Blob path: https://filesfbdac204.blob.core.windows.net/support/elasticsearch-secure-nodes/07222017-084857
------------------------------------

------------------------------------
Creating \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\deploy\07222017-084857.3...
Deploying template \\10.1.20.1\dbetz\azure\components\elasticsearch-secure-nodes\deploy\azuredeploy-generated.json
VERBOSE: Performing the operation "Creating Deployment" on target "esnodesfbdac204".
VERBOSE: 8:49:02 PM - Template is valid.
VERBOSE: 8:49:03 PM - Create template deployment 'elasticsearch-secure-nodes07222017-084857'
VERBOSE: 8:49:03 PM - Checking deployment status in 5 seconds
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gateway-alpha' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gamma' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-alpha' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gateway-gamma' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/virtualNetworks 'vnet-alpha' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/virtualNetworks 'vnet-beta' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204gamma' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/publicIPAddresses 'pip-gateway-beta' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204alpha' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/publicIPAddresses 'pip-alpha' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Resource Microsoft.Network/publicIPAddresses 'pip-beta' provisioning status is succeeded
VERBOSE: 8:49:08 PM - Checking deployment status in 5 seconds
VERBOSE: 8:49:13 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204beta' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-beta' provisioning status is running
VERBOSE: 8:49:13 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-beta' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Network/virtualNetworks 'vnet-gamma' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-alpha' provisioning status is running
VERBOSE: 8:49:13 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204beta' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Network/networkSecurityGroups 'nsg-gamma' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204gamma' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Network/networkInterfaces 'nic-alpha' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Resource Microsoft.Storage/storageAccounts 'esnodesfbdac204alpha' provisioning status is succeeded
VERBOSE: 8:49:13 PM - Checking deployment status in 6 seconds
VERBOSE: 8:49:19 PM - Resource Microsoft.Compute/virtualMachines 'vm-beta' provisioning status is running
VERBOSE: 8:49:19 PM - Resource Microsoft.Network/networkInterfaces 'nic-gamma' provisioning status is succeeded
VERBOSE: 8:49:19 PM - Resource Microsoft.Compute/virtualMachines 'vm-alpha' provisioning status is running
VERBOSE: 8:49:19 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-gamma' provisioning status is running
VERBOSE: 8:49:19 PM - Resource Microsoft.Network/networkInterfaces 'nic-beta' provisioning status is succeeded
VERBOSE: 8:49:19 PM - Checking deployment status in 11 seconds
VERBOSE: 8:49:30 PM - Resource Microsoft.Compute/virtualMachines 'vm-gamma' provisioning status is running
VERBOSE: 8:49:30 PM - Checking deployment status in 11 seconds
VERBOSE: 8:49:42 PM - Checking deployment status in 11 seconds
VERBOSE: 8:49:53 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-beta' provisioning status is succeeded
VERBOSE: 8:49:53 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-alpha' provisioning status is succeeded
VERBOSE: 8:49:53 PM - Checking deployment status in 11 seconds
VERBOSE: 8:50:04 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:09 PM - Resource Microsoft.Network/virtualNetworkGateways 'gateway-gamma' provisioning status is succeeded
VERBOSE: 8:50:09 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:14 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:19 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:25 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:30 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:35 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:40 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:45 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:51 PM - Checking deployment status in 5 seconds
VERBOSE: 8:50:56 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:01 PM - Resource Microsoft.Compute/virtualMachines/extensions 'vm-gamma/script' provisioning status is running
VERBOSE: 8:51:01 PM - Resource Microsoft.Compute/virtualMachines 'vm-gamma' provisioning status is succeeded
VERBOSE: 8:51:01 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:06 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:11 PM - Resource Microsoft.Compute/virtualMachines 'vm-alpha' provisioning status is succeeded
VERBOSE: 8:51:11 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:16 PM - Resource Microsoft.Compute/virtualMachines/extensions 'vm-beta/script' provisioning status is running
VERBOSE: 8:51:16 PM - Resource Microsoft.Compute/virtualMachines/extensions 'vm-alpha/script' provisioning status is running
VERBOSE: 8:51:16 PM - Resource Microsoft.Compute/virtualMachines 'vm-beta' provisioning status is succeeded
VERBOSE: 8:51:16 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:22 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:27 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:32 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:37 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:43 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:48 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:53 PM - Checking deployment status in 5 seconds
VERBOSE: 8:51:58 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:03 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:08 PM - Resource Microsoft.Compute/virtualMachines/extensions 'vm-gamma/script' provisioning status is succeeded
VERBOSE: 8:52:08 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:14 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:19 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:24 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:29 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:35 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:40 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:45 PM - Resource Microsoft.Compute/virtualMachines/extensions 'vm-beta/script' provisioning status is succeeded
VERBOSE: 8:52:45 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:50 PM - Checking deployment status in 5 seconds
VERBOSE: 8:52:55 PM - Resource Microsoft.Compute/virtualMachines/extensions 'vm-alpha/script' provisioning status is succeeded


DeploymentName          : elasticsearch-secure-nodes07222017-084857
ResourceGroupName       : esnodesfbdac204
ProvisioningState       : Succeeded
Timestamp               : 7/23/2017 1:52:51 AM
Mode                    : Incremental
TemplateLink            :
Parameters              :
                          Name             Type                       Value
                          ===============  =========================  ==========
                          admin-username   String                     dbetz
                          ssh-public-key   String                     ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCxbo0LWWXCHEEGxgtraIhHBPPnt+kJGMjYMC6+9gBIsYz8R8bSFfge7ljHRxvJoye+4IrdSf2Ee2grgm2+xT9HjMvVR2/LQjPY+ocdinYHlM6miqvMgMblOMVm6/WwY0LZkozPKuSXzhO
                          +/Q6HTZBr2pig/bclvJuFPBtClrzZx5R3NfV33/2rZpFZH9OdAf28q55jbZ1t9AJhtD27s34/cRVBXNBQtc2Nw9D8cEJ+raRdJitAOX3U41bjbrO1u3CQ/JtXg/35wZTJH1Yx7zmDl97cklfiArAfaxkgpWkGhob6A6Fu7LvEgLC25gO5NsY+g4CDqGJT5kzbcyQDDhbf
                          dbetz@localhost.localdomain
                          script-base      String                     https://filesfbdac204.blob.core.windows.net/support/elasticsearch-secure-nodes/07222017-084857

Outputs                 :
DeploymentDebugLogLevel :

~4 minutes total to setup 3 VMs is pretty good. Keep in mind that this time frame includes running the post-VM-creation script (install.sh). I loaded that with a bunch of stuff. You can see this part of the deploy in lines like the following:

Resource Microsoft.Compute/virtualMachines/extensions 'vm-beta/script' provisioning status is running

and

Resource Microsoft.Compute/virtualMachines/extensions 'vm-gamma/script' provisioning status is succeeded

Why's it so fast? Two reasons: First, the storage accounts, VNets, IPs, NICs, and NSGs are already setup in phase 1. Second, Azure will parallel deploy whatever it can. Upon validating that the dependencies (dependsOn) are already setup, Azure will deploy the VMs. This means that phase 3 is a parallel deployment of three VMs.

Inspection

At this point the entire core infrastructure is in place, including VMs. We can verify this by looking at the Elasticsearch endpoint.

While we can easily derive the endpoint address, let's let Powershell tell us directly:


    (Get-AzureRmPublicIpAddress -ResourceGroupName $rgGlobal -Name "pip-alpha").DnsSettings.Fqdn
    (Get-AzureRmPublicIpAddress -ResourceGroupName $rgGlobal -Name "pip-beta").DnsSettings.Fqdn
    (Get-AzureRmPublicIpAddress -ResourceGroupName $rgGlobal -Name "pip-gamma").DnsSettings.Fqdn

From this we have the following:

esnodesfbdac204-alpha.centralus.cloudapp.azure.com
esnodesfbdac204-beta.westus.cloudapp.azure.com
esnodesfbdac204-gamma.eastus.cloudapp.azure.com

With this we can access the following endpoints to see pairing. You only need to do this on one, but because these are public, let's look at all three:

http://esnodesfbdac204-alpha.centralus.cloudapp.azure.com:9200
http://esnodesfbdac204-beta.westus.cloudapp.azure.com:9200
http://esnodesfbdac204-gamma.eastus.cloudapp.azure.com:9200

Always use SSL. Consider HTTP deprecated.

nodes

Let's see if we have any indices.

w/o data

Nope. That makes sense because... well... I didn't create any yet.

Logging into alpha

We want to generate some data for Elasticsearch. I've provided a generation tool which the VMs setup during their provisioning.

Before we get to that point, we have to login to a VM.

Choose a VM DNS name and try to ssh to it. I don't care which one. I'm going with alpha.

[dbetz@core ~]$ ssh esnodesfbdac204-alpha.westus.cloudapp.azure.com
The authenticity of host 'esnodesfbdac204-alpha.centralus.cloudapp.azure.com (52.165.135.82)' can't be established.
ECDSA key fingerprint is 36:d7:fd:ab:39:b1:10:c2:88:9f:7a:87:30:15:8f:e6.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'esnodesfbdac204-alpha.centralus.cloudapp.azure.com,52.165.135.82' (ECDSA) to the list of known hosts.
[dbetz@alpha ~]$

Troubleshooting

If you get a message like the following, then you don't have the private key that goes with the public key you gave the VM in the ARM template.

[dbetz@core ~]$ ssh esnodesfbdac204-alpha.westus.cloudapp.azure.com
The authenticity of host 'esnodesfbdac204-alpha.westus.cloudapp.azure.com (13.87.182.255)' can't be established.
ECDSA key fingerprint is 94:dd:1b:ca:bf:7a:fd:99:c2:70:02:f3:0c:fa:0b:9a.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'esnodesfbdac204-alpha.westus.cloudapp.azure.com,13.87.182.255' (ECDSA) to the list of known hosts.
Permission denied (publickey,gssapi-keyex,gssapi-with-mic).

To get your private key you can dump it out:

[dbetz@core ~]$ cat ~/.ssh/id_rsa
-----BEGIN RSA PRIVATE KEY-----
...base64 stuff here...
-----END RSA PRIVATE KEY-----

You can take that and dump it into a different system:

[dbetz@core ~]$ export HISTCONTROL=ignorespace
[dbetz@core ~]$         cat > ~/.ssh/id_rsa <<\EOF
-----BEGIN RSA PRIVATE KEY-----
...base64 stuff here...
-----END RSA PRIVATE KEY-----
EOF

When HISTCONTROL is set to ignorespace is set and a command has a space in front of it, it won't be stored in shell history.

When you try it again, you'll get a sudden urge to throw your chair across the room:

[dbetz@core ~]$ ssh esnodesfbdac204-alpha.eastus.cloudapp.azure.com
The authenticity of host 'esnodesfbdac204-alpha.eastus.cloudapp.azure.com (13.87.182.255)' can't be established.
ECDSA key fingerprint is 94:dd:1b:ca:bf:7a:fd:99:c2:70:02:f3:0c:fa:0b:9a.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'esnodesfbdac204-alpha.eastus.cloudapp.azure.com,13.87.182.255' (ECDSA) to the list of known hosts.
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@         WARNING: UNPROTECTED PRIVATE KEY FILE!          @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
Permissions 0664 for '/home/dbetz/.ssh/id_rsa' are too open.
It is required that your private key files are NOT accessible by others.
This private key will be ignored.
bad permissions: ignore key: /home/dbetz/.ssh/id_rsa
Permission denied (publickey,gssapi-keyex,gssapi-with-mic).

Chill. Your permissions suck. File permissions are set via your umask settings. In this case, they're too open. Only you need permissions, read-only permissions at that: 400.

You just need to drop the permissions:

[dbetz@core ~]$ chmod 400 ~/.ssh/id_rsa

Now you can get in:

[dbetz@core ~]$ ssh esnodesfbdac204-alpha.eastus.cloudapp.azure.com
The authenticity of host 'linux04.jampad.net (192.80.189.178)' can't be established.
ECDSA key fingerprint is 7a:24:38:8c:05:c1:2c:f3:d0:fa:52:0d:2c:a4:04:9c.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'linux04.jampad.net,192.80.189.178' (ECDSA) to the list of known hosts.
Last login: Sat Jul 22 17:39:07 2017 from 136.61.130.214
[dbetz@alpha ~]$

We're in.

Adding data

To generate sample data for this scenario run my data generation tool (based on my project Hamlet.

It's in the /home/root folder.

[root@alpha ~]# ./setup_data_generation.sh

Azure does its automated setup as root. That's why were here.

Running this installs all the required tool and writes instructions.

Follow the instructions the tool provides :

[root@alpha ~]# cd /srv/hamlet
[root@alpha hamlet]# source bin/activate
(hamlet) [root@alpha hamlet]# cd content
(hamlet) [root@alpha content]# python /srv/hamlet/content/hamlet.py
http://10.17.0.4:9200/librarygen
^CStopped (5.8595204026280285)

I let it run for a few seconds, then hit CTRL-C to exit.

Now let's refresh our Elasticsearch endpoints (the :9200 endpoints).

with data

The data is there and has replicated across all servers.

Looking at all three systems at once is just for the purpose of this demo. In reality, all you have to do is look at /_cat/shards on any node ins the cluster and be done with it:

shards

You can even see that there are multiple shards and replicas (p => primary, r => replica).

Create Traffic Manager

At this point we want to create a single point-of-contact for search. We do this with traffic manager. You create the traffic manager then add an endpoint for each system:

    function createtrafficmanager { param([Parameter(Mandatory=$true)]$rg,
                                          [Parameter(Mandatory=$true)]$count)
        clear

        $names = @("alpha", "beta", "gamma", "delta", "epsilon")

        $uniqueName = (Get-AzureRmStorageAccount -ResourceGroupName $rg)[0].StorageAccountName

        $tmProfile = New-AzureRmTrafficManagerProfile -ResourceGroupName $rg -name "tm-$rg" `
                        -TrafficRoutingMethod Performance `
                        -ProfileStatus Enabled `
                        -RelativeDnsName $uniqueName `
                        -Ttl 30 `
                        -MonitorProtocol HTTP `
                        -MonitorPort 9200 `
                        -MonitorPath "/"

        (1..$count).foreach({
            $name = $names[$_ - 1]
            $pip = Get-AzureRmPublicIpAddress -ResourceGroupName $rg -Name "pip-$name"
            Add-AzureRmTrafficManagerEndpointConfig -TrafficManagerProfile $tmProfile -EndpointName $name -TargetResourceId $pip.id -Type AzureEndpoints -EndpointStatus Enabled
        })
        Set-AzureRmTrafficManagerProfile -TrafficManagerProfile $tmProfile

    }

    createtrafficmanager -rg 'esnodes4dede7b0' -count 3

Output

Id                               : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodes4dede7b0/providers/Microsoft.Network/trafficManagerProfiles/tm-esnodes4dede7b0
Name                             : tm-esnodes4dede7b0
ResourceGroupName                : esnodes4dede7b0
RelativeDnsName                  : esnodes4dede7b0alpha
Ttl                              : 30
ProfileStatus                    : Enabled
TrafficRoutingMethod             : Performance
MonitorProtocol                  : HTTP
MonitorPort                      : 9200
MonitorPath                      : /
MonitorIntervalInSeconds         : 30
MonitorTimeoutInSeconds          : 10
MonitorToleratedNumberOfFailures : 3
Endpoints                        : {alpha, beta, gamma}

Id                               : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodes4dede7b0/providers/Microsoft.Network/trafficManagerProfiles/tm-esnodes4dede7b0
Name                             : tm-esnodes4dede7b0
ResourceGroupName                : esnodes4dede7b0
RelativeDnsName                  : esnodes4dede7b0alpha
Ttl                              : 30
ProfileStatus                    : Enabled
TrafficRoutingMethod             : Performance
MonitorProtocol                  : HTTP
MonitorPort                      : 9200
MonitorPath                      : /
MonitorIntervalInSeconds         : 30
MonitorTimeoutInSeconds          : 10
MonitorToleratedNumberOfFailures : 3
Endpoints                        : {alpha, beta, gamma}

Id                               : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodes4dede7b0/providers/Microsoft.Network/trafficManagerProfiles/tm-esnodes4dede7b0
Name                             : tm-esnodes4dede7b0
ResourceGroupName                : esnodes4dede7b0
RelativeDnsName                  : esnodes4dede7b0alpha
Ttl                              : 30
ProfileStatus                    : Enabled
TrafficRoutingMethod             : Performance
MonitorProtocol                  : HTTP
MonitorPort                      : 9200
MonitorPath                      : /
MonitorIntervalInSeconds         : 30
MonitorTimeoutInSeconds          : 10
MonitorToleratedNumberOfFailures : 3
Endpoints                        : {alpha, beta, gamma}

Id                               : /subscriptions/20e08d3d-d5c5-4f76-a454-4a1b216166c6/resourceGroups/esnodes4dede7b0/providers/Microsoft.Network/trafficManagerProfiles/tm-esnodes4dede7b0
Name                             : tm-esnodes4dede7b0
ResourceGroupName                : esnodes4dede7b0
RelativeDnsName                  : esnodes4dede7b0alpha
Ttl                              : 30
ProfileStatus                    : Enabled
TrafficRoutingMethod             : Performance
MonitorProtocol                  : HTTP
MonitorPort                      : 9200
MonitorPath                      : /
MonitorIntervalInSeconds         : 30
MonitorTimeoutInSeconds          : 10
MonitorToleratedNumberOfFailures : 3
Endpoints                        : {alpha, beta, gamma}

Just access your endpoint:

http://esnodes4dede7b0.trafficmanager.net:9200

shards

Now you have a central endpoint. In this case traffic will be send to whichever Elasticsearch endpooint is closest to the end user (=performance traffic routing method).

You'll want SSL for that. Well, after you go through the following DNS section.

Adding DNS

At this point everything is functional. Let's go beyond bare functionality. Normally, you'd want something like search.davidbetz.net as an endpoint.

The following will give my davidbetz.net domain a subdomain: esnodes4dede7b0.davidbetz.net.


    function creatednscname { param([Parameter(Mandatory=$true)]$dnsrg,
                                          [Parameter(Mandatory=$true)]$zonename,
                                          [Parameter(Mandatory=$true)]$cname,
                                          [Parameter(Mandatory=$true)]$target)

        New-AzureRmDnsRecordSet -ResourceGroupName $dnsrg -ZoneName $zonename -RecordType CNAME -Name $cname -Ttl 3600 -DnsRecords (
            New-AzureRmDnsRecordConfig -Cname $target
        )
    }

    function _virtualenv {

    $dnsrg = 'davidbetz01'
    $zone = 'davidbetz.net'

    creatednscname $dnsrg $zone $rgGlobal "$rgGlobal.trafficmanager.net"

    } _virtualenv

Done.

shards

Addition Thoughts

Remember, SSL. You do this with SSL termination. Putting SSL between each system internally (between nginx and an internal web server) is naive and foolish; you only need SSL to external systems. You do this with Nginx. See my secure Elasticsearch lab at https://linux.azure.david.betz.space/_/elasticsearch-secure for details.

You'll also want to protect various Elasticsearch operations via password (or whatever). See my Running with Nginx for more information.

You can learn more about interacting with Elasticsearch directly via my article Learning Elasticsearch with PowerShell.
